Rail-mounted Container Gantry Crane

rail-mounted-gantry-crane-pcb

Latest Case

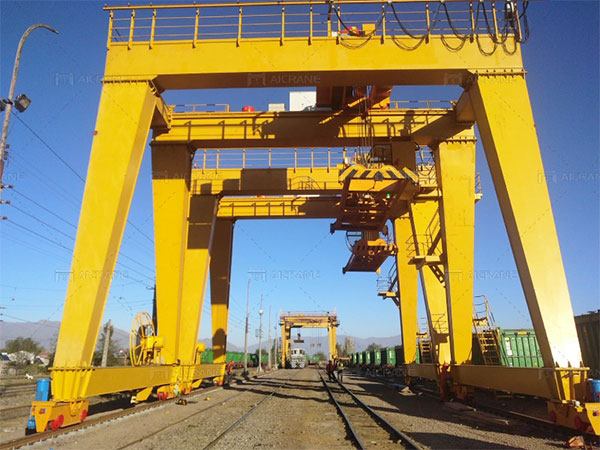

32 ton MGH gantry crane in kasakhstan
Test-run of 32T Container Gantry Crane

Delivery Time: May, 2023

Location: Kazakhstan

Type: MGH European standard double girder gantry crane

Parameters: Capacity 32t, span 30m, height 13m

Installation method:

Online installation guidance and on-site commissioning assistance

Application:

For lifting containers at the logistics station in Atyrau.

Learn more

Container Gantry Cranes

rail-mounted-gantry-crane-01
Container Gantry Crane(Rail Mounted Type)

Lifting capacity: 20t/32t/35t/41/45t or customized

Features:
Rail mounted container gantry cranes (RMG cranes) are mainly used for stacking containers in a railway station, port. They are available in a variety of different widths and heights.

General specifications of the RMG cranes we produce:
There is space between the support legs for approximately :
• 6-20 containers lined up lengthways;
• 4-6 containers to be stacked on top of each other.
• For ISO Standard 20ft/40ft/45ft Containers

Get A Free Quote

Rail Mounted Gantry Cranes For Various Industrial Applications

Rail mounted gantry crane or RMG crane is traditionally used in logistics yards or railway stations for stacking or grounding containers, it is a good choice for handling heavy loads. The following are some application work conditions of our container gantry cranes.

  • Ports: Rail mounted container gantry cranes are used to load and unload shipping containers from vessels.
  • Container Terminals: Rail mounted container gantry cranes are used to stack and retrieve shipping containers for storage and transportation.
  • Railway Stations: RMG cranes are used to transfer shipping containers between trains and trucks for efficient intermodal transportation.

rail-mounted-gantry-crane-applications

RMG-rail-mounted-gantry-crane-applications

How to Choose the Right RMG Crane:

rail mounted gantry crane-3d

  • 1. how many containers do you need to lift per time;
  • 2. how about the max lifting capacity do you need;
  • 3. span (width between the two legs);
  • 4. height ( distance the goods are lifted from the ground);

rail-mounted-gantry-crane-design

Parameters:

Technical Parameter of  container Gantry Crane
Capacity t 30 35 40.5 45 50
Span S(m) 18~35 18~35 18~35 18~35 18~35
Lifting height m 12.3~21 12.3~21 12.3~21 12.3~21 12.3~21
Lifting speed m/min 12.5 9.5 10 9.8 9.2
Trolley speed m/min 56 48 48 45 45
Crane speed m/min 50 44.3 44.3 42 42
Container 20′   40′ 20′   40′   45′ 20′   40′   45′ 20′   40′   45′ 20′   40′   45′
Work duty A6~A8 A6~A8 A6~A8 A6~A8 A6~A8
Track type QU80 QU80   QU100 QU80   QU100 QU100   QU120 QU100   QU120

Spreader is a critical component of our gantry crane system, widely used in port terminals, container yards, and other container handling facilities. Our spreader is compatible with different types of containers, including standard ISO containers, as well as special containers such as open-top containers, flat rack containers, and more. In addition, we will also help you customize suitable container spreaders according to your needs.

Electric-Rotary-Telescopic-Container-Spreader01

Electric Rotary Telescopic Spreader

Lower-Swivel-Container-Spreader02

Lower Swivel Container Spreader

Hydraulic-Telescopic-Container-Spreader03

Hydraulic Telescopic Spreader

Electric-Swivel-Hook05

Electric Swivel Hook Spreader

Electric-Telescopic-Steel-Coil-Spreader04

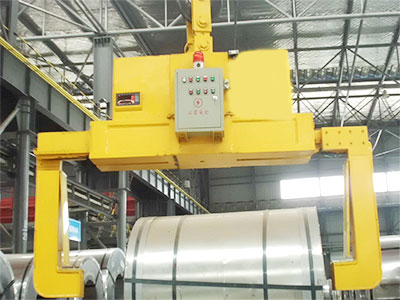

Telescopic Steel Coil Spreader

RTG & RMG Container Gantry Crane, Used for Container Handling in Ports.

Professional Service Team in Aicrane

Aicrane® professional service team is composed of highly skilled and experienced technicians who have undergone rigorous training and certification in the installation, maintenance, repair, and troubleshooting of the company’s equipment. Our service team will provide you customized solutions that meet your lifting needs according to actual working conditions.

24/7 online customer service is available to answer your calls efficiently.
Professional techs are dedicated to customizing solutions tailored to you.
Reliable service in the production, consignment, and installation process.
Perfect after-sales service ensures your long-term satisfaction.

FAQs

What are the customization options? Can I configure it to my needs?
Yes, you can customize the container gantry crane to fit your project needs. You can adjust parameters such as height, load capacity, tire type, etc. to ensure it is a perfect match for your project.
How can you package and ship cranes?
  • We usually use plastic film and standard export fumigation-free wooden box to prevent the damage by rain;
  • We also reinforce it with iron nails or steel plates to avoid damage during transportation.
How can I install a container gantry crane?
  • If you purchase Aicrane container gantry cranes, we will provide installation and maintenance instruction manuals to help;
  • If you have any questions during the installation process, we have professional technical engineers to guide the installation online;
  • If you have special needs for on-site guidance, we can send engineers to your site as appropriate.
How long do container gantry cranes need to be maintained?
  • We recommend a comprehensive maintenance and inspection of the RTG every 3 months;
  • Maintenance should include cleaning, lubrication, tightening bolts and checking the electrical system.
How can you provide after-sale service?
  • We provide one-stop service, from delivery, installation to after-sales with professional team;
  • We also provide online customer service ready to solve your problems at any time, and after-sales documentation support;
  • If the problem still not be solved, we can send our engineers to your site.
