Overhead cranes, also known as bridge cranes are one type of material handling equipment to meet the lifting requirements of medium and heavy industries. Aimix applies his overhead cranes manufacturing process to meet the different customer´s requirements, taking care of which kind of work is going to perform. We can provide 1-800 Tons of customized overhead cranes, Our gained experience over more than 55 years is backed up as specialists in overhead cranes.
Details Introduction of the Different Overhead Cranes
Lifting Capacity: 1~25t
Span Length: 7.5~31.5m
Lifting Height: 6~30m
Electric Single Girder Overhead Cranes are designed and improved on basis of an electric hoist, it is equipped with the features of reasonable structure, strong rigidity of the whole set. it is widely used in warehouses, workshops, garages and so on. also we can custom design for different needs. (Grab. metallurgy, explosion-proof).
Lifting Capacity: 1~10t
Span Length: 3~22.5m
Lifting Height: 6~30m
Lifting Speed: 0.3-8m/min
Working Class: A3, A4
Ambient Temperature: -20~40℃
1. Steel structure: Q235B/Q355B carbon structural steel with seamless once forming technology
2. Hook: Finest steel forged hook, long using life;
3. Electrics: Chint, Schneider or Siemens etc.
Lifting Capacity: 5~800t
Span Length: 10.5~31.5m
Lifting Height: 6~30m

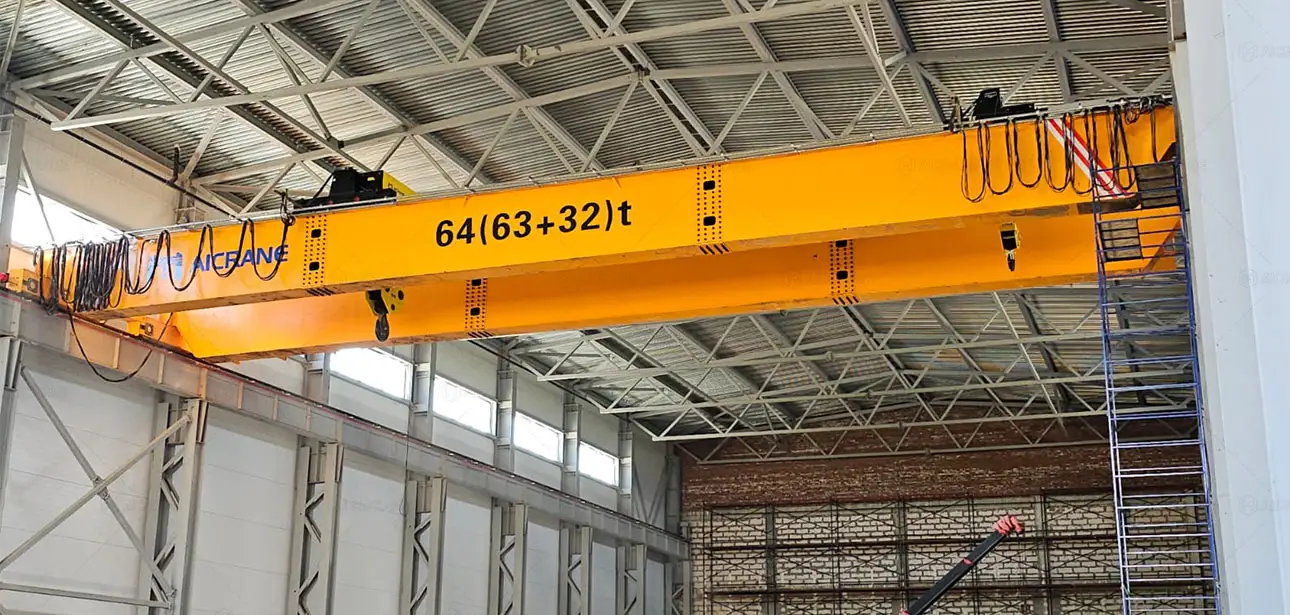

Double girder overhead crane is designed to move, lift or transport heavy materials, which is widely used for transferring heavy goods in factory, warehouse, processing plant and so on. According to the different working conditions or environment, we can customize overhead cranes with different tons, lifting heights, spans. and also you can choose the power source.
European Standard Overhead Cranes:
Main Parts of Overhead Crane:
Overhead bridge crane consists of bridge main girders, end trucks, hoist trolley, electric control system and cabin, etc. Aicrane focuses on each details, quality first, we have exported to more than 30 countries, Regardless of your lifting needs, Aicrane Machinery is committed to providing you with lifting heavy cranes and services that increase the efficiency and value of your business.
Main beam:
1. No welding strong main beams, double end trucks,
2. Q235B carbon structural steel with seamless once forming technology more strong and elegant.
3. Strong box type and standard camber, There will have a reinforcement plate inside.
End truck: Buffer motor drive with roller bearings and permanent iubrication
Hook: Drop forged, plain “C” type, swiveling on the thrust bearing.
Wire rope: Heavy bearing, strong and durable, not easy to rotate, not easy to break.
Clients Display Show
Aicrane single/double girder overhead crane, exported to 50+ countries, 5000+ clients. Such as Thailand, Vietnam, Indonesia, Papua New Guinea, Australia, Malaysia, the Philippines, UAE, Saudi Arabia, USA, Bangladesh, South Korea, Fiji, Mynamar, Cambodia, etc. It is a cost-effective and tailored lifting solution, welcome to contact us, we will contact you sooner.
