Overhead Bridge Crane Manufacturer

overhead-bridge-crane-supplier

Overhead bridge crane is characterized by more reasonable structure and higher strength steel as a whole crane, used together with CD1/MD1 model electric hoist or open winch as a complete set, it is a kind of workshop crane with a capacity 1ton ~ 32ton. (also customize heavy crane up to 500 ton), The span is 7.5m~ 22.5m. Working duty is A3~A5, working temperature is -25-40ºC. Overhead bridge crane is widely used in production workshop, warehouse, steel mills, materials stocks, equipment assembly etc to lift goods.

Overhead Bridge Crane (Single & Double Girder Type)

single-girder-overhead-bridge-crane

Single Girder Overhead Crane
Name: bridge crane, eot crane
Capacity: 0.5~32t
Span: 7.5~31.5m
Lifting Height: 6~30m
Lifting Mechanism: hoist, grab, etc

double-girder-overhead-bridge-crane

Double Girder Overhead Crane
Name: bridge crane, eot crane
Capacity: 5~500t
Span: 10.5-31.5m
Lifting Height: 6-24m
Lifting Mechanism: hoist, opein winch, etc

Tips:
Normally, the heavy lifting equipment costs more than light duty type, when you choose a appropriate models, the price is not the only thing you need to consider. overhead crane basically needs to be customized, so the price will also vary according to the tonnage, span, and lifting height. Please contact us for a more accurate quote.

Overhead Bridge Crane Application:

Overhead crane used in different project site

Is an overhead crane right for your business? A bridge system is essential to the operations of several industries.for example:

1. Automotive Manufacturing: Widely used for handing of heavy compnents, raw materials and molds, it is essential to choose a right overhead crane for automotive manufacturing.

2. Paper Milling: Installation, maintenance of papaer milling machines and handling of finished paper and paper rolls need to use overhead crane.

3. Metal Refining: Steel factory and other metal industries is continually operating with heavy and dangerous materials, overhead crane can help to hand the raw materials throughout the manufacturing process. It’s safer and more efficient.

Provide you with customized solutions for industrial lifting equipment!30 years of professional lifting equipment manufacturing experience in Aicrane®

Technical Parameter of Overhead Bridge Crane

Capacity t 1 2 3 5 10 16 20 25
Span S(m) 7.5~31.5 7.5~31.5 7.5~31.5 7.5~31.5 7.5~31.5 7.5~31.5 7.5~31.5 7.5~25.5
Lifting height m 6~30 6~30 6~30 6~30 9~30 9~30 9~30 9~30
Lifting speed m/min 8(0.8/8) 8(0.8/8) 8(0.8/8) 8(0.8/8) 7(0.7/7) 3.5(0.35/3.5) 3.3(0.33/3.3) 3(0.3/3)
Trolley speed m/min 20(30) 20(30) 20(30) 20(30) 20(30) 18 14 16
Crane speed m/min 20(30) 20(30) 20(30) 20(30) 20(30) 20(30) 20(30) 20(30)
Work duty A3~A4 A3~A4 A3~A4 A3~A4 A3~A4 A3~A4 A3~A4 A3~A4
Track type P18 P18  P24 P24 P24 P24 P30 P30 P38 P38 P43 P38 P43
Capacity t 5 10 16 20 32 50
Span S(m) 10.5~31.5 10.5~31.5 10.5~31.5 10.5~31.5 10.5~31.5 10.5~31.5
Lifting height m 6~16 6~16 6~16 6~16 6~18 6~16
Lifting speed m/min 11.5 8.5 7.9 7.2 6 6
Trolley speed m/min 37.2 37.4 40.1 40 37 31.3
Crane speed m/min 70.6 70.6 74.3 75.1 64.9 58.5
Work duty A3~A7 A3~A7 A3~A7 A3~A7 A3~A7 A3~A7
Track type P38 P38  P43 P43 P43 QU70 QU80
Capacity t 75 100 125 160 200 250
Span S(m) 10.5~31.5 13~31 13~31 13~31 13~31 13~31
Lifting height m 6~20 6~20 6~20 6~22 6~20 6~20
Lifting speed m/min 3.9 3.1 3.9 3.5 2.6 2.2
Trolley speed m/min 31.3 33.6 33 40 32 32
Crane speed m/min 61 61.8 62.3 68 48 50
Work duty A3~A7 A3~A7 A3~A7 A3~A7 A3~A7 A3~A7
Track type QU100 QU100 QU100 QU120 QU120 QU120
Capacity t 300 350 400 450
Span S(m) 13~31 13~31 13~31 13~31
Lifting height m 6~24 6~24 6~30 6~30
Lifting speed m/min 2.4 2.2 2.6 2.1
Trolley speed m/min 28 28 31 27
Crane speed m/min 42 42 45 42
Work duty A3~A7 A3~A7 A3~A7 A3~A7
Track type QU120 QU120 QU120 QU120
We need you confirm below information:
1. Which kind of overhead crane do you need?(single girder, double girder, underhung, etc)
2. FOB or CIF price?(If CIF price,tell us your nearest sea port)
3. Lifting capacity?(ton)
4. Lifting height?(m)
5. Span?(m)
6. Power supply?(V,HZ,Phase)
7. Working environment?(Where does the crane used & what does it used to lift for?)
8. Any other special requirements do you need?

    CONTACT US
    Please fill out the quick form and we will be in touch with lightning speed.

    * Your Name

    * Your Email

    * Your Tel/Whatsapp Number

    Your Country

    Your Company

    * Your Requirement

    Display of Overhead Bridge Crane Usage from the Customer Site:

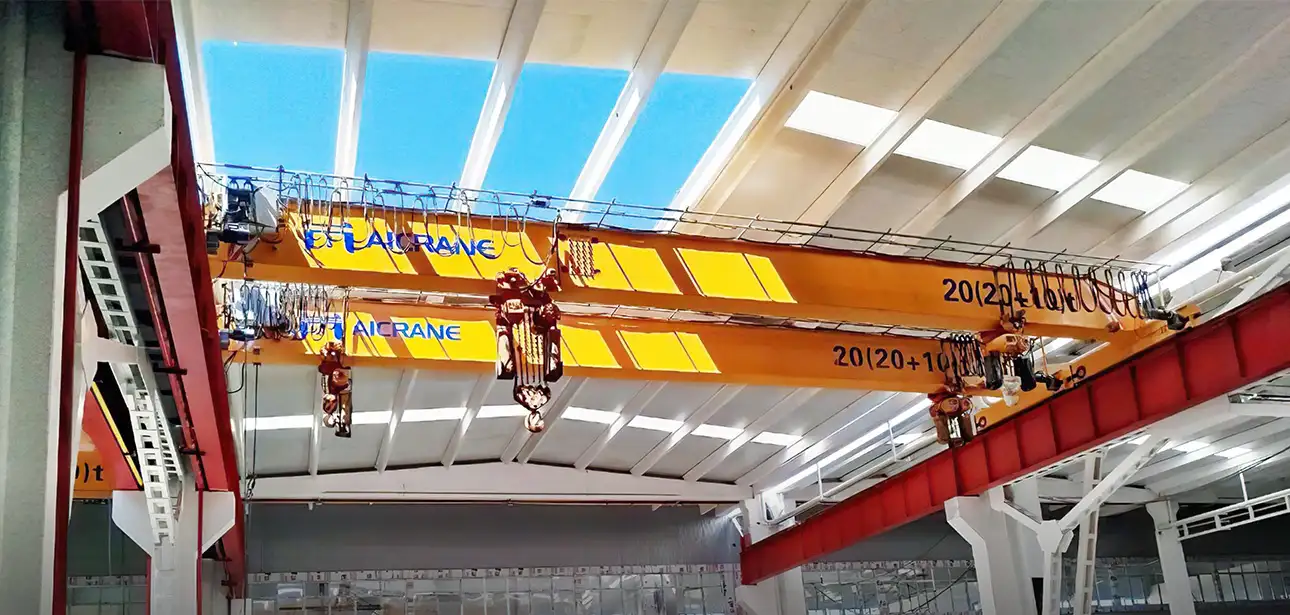

    10 ton & 16 ton Overhead Crane Shipped to Uzberkistan

    10 ton & 16 ton Overhead Crane Shipped to Uzberkistan
    10 ton & 16 ton Overhead Crane Shipped to Uzberkistan
    10 ton single girder overhead crane and 20 ton double girder overhead crane has shipped to Uzbekistan, after testing and commissioning, they are quite satisfied with the overhead crane performance.Our clients always commend the professionalism and dedication of our aicrane service, welcome to contact us and let me provide a full set of lifting solution for your project, i bet it can exceed your expectation. Contact Us

    Multi-pivots Electric Single-Beam Suspension Overhead Crane

    30 ton Overhead Crane in Nigeria


    More Cases of Aicrane® Overhead Crane:

    Aicrane® overhead cranes have been exported to many countries, for example, Philippines, Malaysia, Indonesia, Thailand, Nigeria, Kenya, Chile. etc, It greatly improves the working efficiency and reduces the production time and cost.

    Choose AICRANE overhead crane to lift heavy materials because of is affordable and efficient work, if you always need to lift, move heavy materials, for example, steel, concrete pipe, marble, steel coil, remember to contact us, the most cost effective lifting solution will be offered for you in a short time.
