A mobile boat hoist is a kind of dedicated hoisting machinery which is used to up and down water work of boat and level transportation, transfer ship and vessels from dock to shipyard or warehouse, main used to the shipyard, fishing port along with the coast, etc. The boat hoist crane adopts to structure of the wheel and can achieve 360-degree turns and run diagonally, its features of flexible, convenient, safe, reliable.
Rated lifting capacity: 10-1200t
Span: 6.5-25m
Lifting speed: 0-3m/min
Running speed: 0-40m/min
Customize to Fit Your Needs
Capacity: 20 ton, 25 ton, 30 ton, 35 ton, 40 ton, 50 ton, 70 ton, 80 ton, 100 ton, 120 ton, 150 ton, 200 ton, 250 ton, 300 ton, 500 ton, 800 ton, Up to 1200ton.
Customize capacity, width, height, and more to fit your vessels, boats & yacht lifting need.
Application Field & Features
| Applications Field | Features |
| 1. lift tug, yard, fishing boat, petrol boat | 1. it adopts the soft and firm belt, no harm to the boat when hoisting |
| 2. launch and recovery of small boats and pontoons in Harbor | 2. It can move in a diagonal direction |
| 3. lift deep keel sailing yachts | 3. it also can be steering in 90-degree |
| 4. lifting boats for repair and services | 4. It can put the boat in any designated position according to requirements |
| 5. transport large molds for large presses | 5. It can adjust the width of the main girder according to the boat in case of handling different side boat |
Parameter Range:
| Lifting capacity (t) | up to 1200 t |
| Span Length (m) | up to 25m (Customer request) |
| Lifting Height (m) | up to 20m (Customer request) |
| Lifting speed (m/min) | 0-3m/min |
Note: Above parameters are just for your reference, If the requirements are more than the above mentioned, we could especially design them for you, Click Here to customize your own marine travel lift!
Video：
About Aicrane:
1. 30+ years manufacturer Experience;
2. OEM and ODM accepted;
3. Lower price at same quality;
4. Drawing provided when need;
5. 24 hours price provided;
6. Customization production, high efficiency;

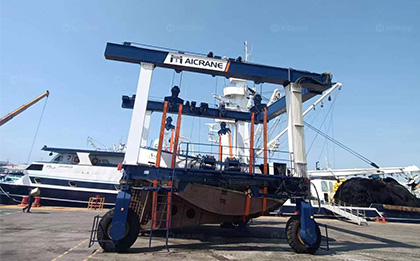

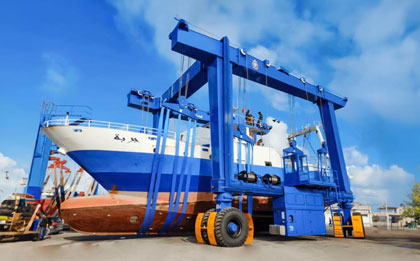

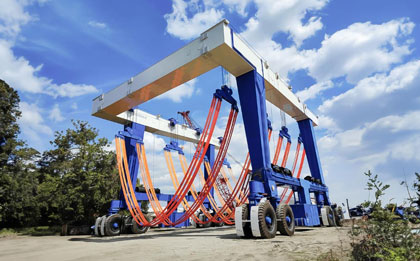

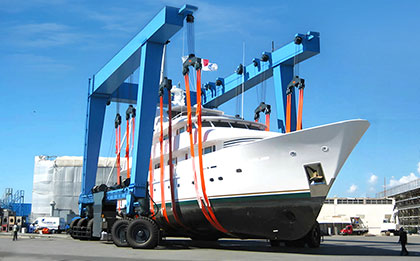

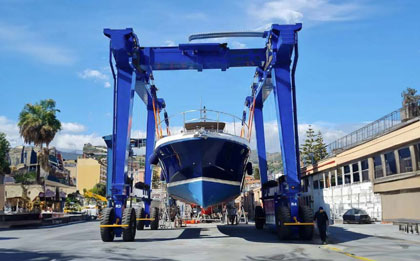

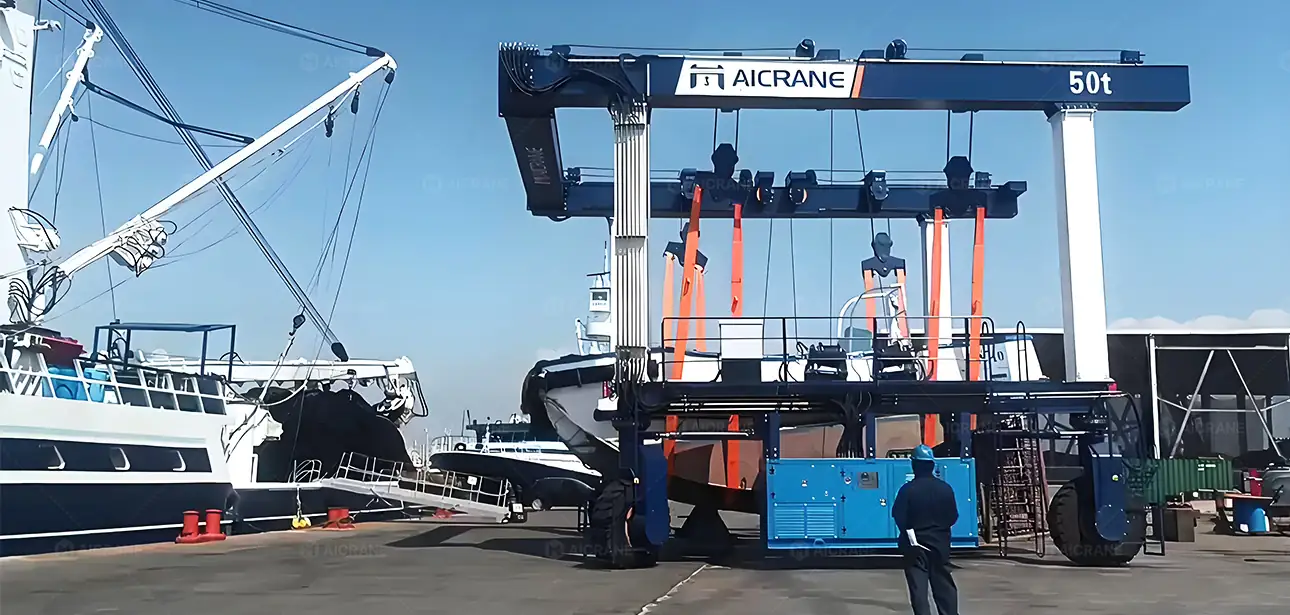

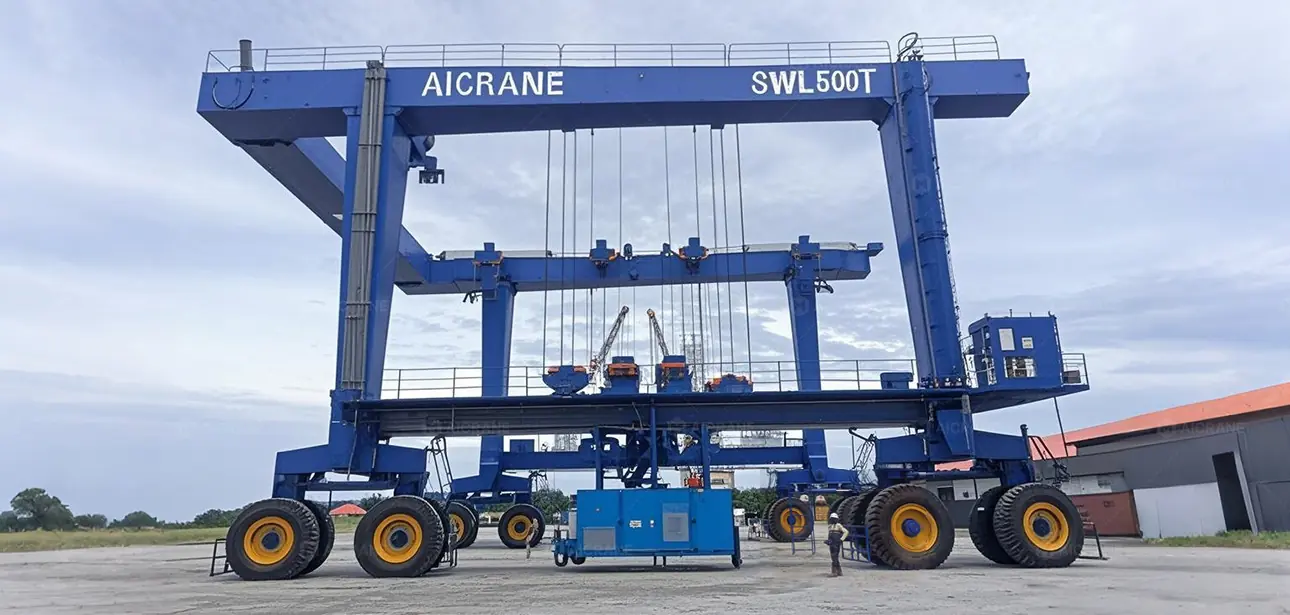

Case Delivery and Installation Gallery:
