Single Girder Gantry Crane

single-girder-gantry-crane

Single Girder Gantry Crane

  • Lifting Capacity: 1~20t ( customized )
  • Span Length: 8~35m ( customized )
  • Lifting Height: 6~18m ( customized )
  • Lifting Speed: 2-20m/min
  • Working Class: A3, A4
  • Ambient Temperature: -20~40℃

Application Fields

Single girder gantry crane is widely used in open warehouse, material stocks area, cement plant, granite industry, railway station, construction industry to lift & move heavy materials horizontally and vertically, According to your detailed requirement, we can customize gantry crane to match your lifting need.

Technical Parameter of Electric Hoist Single Girder Gantry Crane

Technical Parameter of Electric Hoist Single Girder Gantry Crane
Capacity t 3 5 10 16 20
Span S(m) 8~35 8~35 8~35 8~35 8~35
Lifting height m 6~18 6~18 6~18 6~18 6~18
Lifting speed m/min 8(0.8/8) 8(0.8/8) 7(0.7/7) 3.5(0.35/3.5) 3.3(0.33/3.3)
Trolley speed m/min 20(30) 20(30) 20(30) 18 14
Crane speed m/min 20(30) 20(30) 20(30) 20(30) 20(30)
Work duty A3~A4 A3~A4 A3~A4 A3~A4 A3~A4
Track type P24 P24 P30 P30  P38 P38 P38  P43

Note: Above Data is just for your reference, if you have any other detail requirements, please contact us online now!
We are aimed to provide you with customized gantry crane solutions for industrial lifting equipment!
Available tonnage range 1-20 ton
Hot Sale Model: 5ton, 6ton, 10ton, 15ton, 20ton

Feedback From 10 ton Electric Hoist Single Girder Gantry Crane Clients

Gantry cranes are very popular for lifting, moving cement and precast applications, their design allows them to be used outdoors and also allows run on the track embedded in the ground.
These types of cranes help in significantly increasing productivity because they have low energy consumption rate which cuts down on the running costs, increasing profitability.

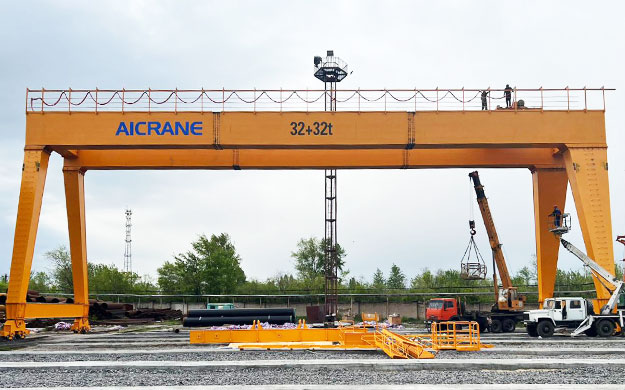

Double Girder Gantry Crane

double-girder-gantry-crane-70t

Double Girder Gantry Crane

  • Lifting Capacity: 5~500t ( customized )
  • Span Length: 8~35m ( customized )
  • Lifting Height: 6~18m ( customized )
  • Lifting Speed: 1.5-11.5m/min
  • Working Class: A3-A7
  • Ambient Temperature: -20~40℃

Application Fields

Double girder gantry crane is widely used for the steel industry, port, containers yard, railway freight station, coastal yard or leading-edge port, etc. According to your detailed requirement, we can customize the gantry crane to match your lifting need.

Technical Parameter of Double Girder Gantry Crane

Technical Parameter of Double Girder Gantry Crane
Capacity t 5 10 16 20 32 50 75 100 160 200
Span S(m) 18~35 18~35 18~35 18~35 18~35 18~35 18~35 18~35 18~35 18~35
Lifting height m 6~18 6~18 6~18 6~18 6~18 6~18 6~18 6~18 6~18 6~18
Lifting speed m/min 11.5 8.5 7.9 7.2 6 5.9 4.7 3.9 3.5 3.5
Trolley speed m/min 37.2 37.4 40.1 40 37 31.3 38.2 33.9 22.5 29
Crane speed m/min 37.7 37.7 40.1 40.1 38 44 38.3 32.3 28 28
Work duty A3-A7 A3-A7 A3-A7 A3-A7 A3-A7 A3-A7 A3-A7 A3-A7 A3-A7 A3-A7

Note: Above Data is just for your reference, if you have any other detail requirements, please contact us online now!
We are aimed to provide you with customized gantry crane solutions for industrial lifting equipment!
Available tonnage range 10-500 ton;
Hot Sale Model: 5ton, 10ton, 15ton, 20ton, 30ton, 50ton, 75ton, 100ton.

3D Video of the Double Girder Gantry Crane

Customize Gantry Crane for Different Industries Use

Our goal is to help you find what type of gantry crane will be most beneficial for the needs of your operation.

1. Portable gantry cranes are widely used for lifting and holding light duty products in place while
it’s being worked on, fabricated, or assembled. lifting capacity can 1-10 ton

2. Single girder gantry cranes are widely used for lifting and moving manufacturing parts, equipment, etc;
lifting and moving concrete beams for road and bridge construction; lifting capacity can 1-20 ton

3. Double girder gantry crane are commonly used for heavy fabrication applications: rail yards, shipping and container yards;
steel yards, scrap yards; port: container handling; lifting capacity can up to 500 ton

Gantry-Crane-for-Precast-Concrete

Gantry Crane for Precast Concrete

Get A Free Quote

Gantry Crane for Stone Factory

Gantry Crane for Stone Factory

Get A Free Quote

gantry-crane-for-Railway-handling

Gantry Crane for Railway Handling

Get A Free Quote


gantry-crane-for-indoor-lifting

Gantry Crane for Indoor Lifting

Get A Free Quote

gantry-crane-with-Grab

Gantry Crane with Grab

Get A Free Quote

portable-gantry-crane-for-light-duty

Portable Gantry Crane for Light Duty

Get A Free Quote


shipbuilding-gantry-crane

Shipbuilding Gantry Crane

Get A Free Quote

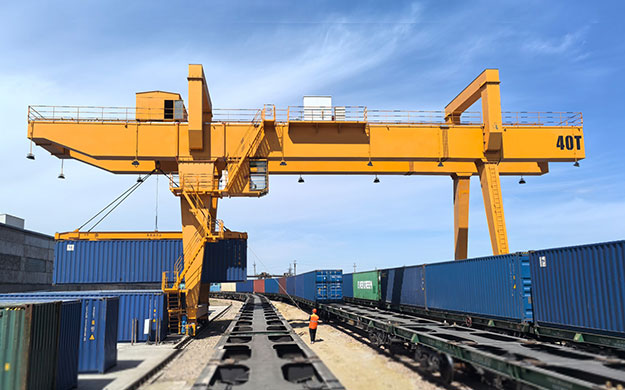

container-gantry-crane

Container Gantry Crane

Get A Free Quote

straddle-carrier-gantry-crane

Straddle Carrier Gantry Crane

Get A Free Quote


Aicrane® Gantry Crane All Over the World:

Aicrane® will make our best efforts to let our customers be satisfied. Up to now, our products have been exported to over 60 countries, such as Vietnam, Thailand, UAE, Saudi Arabia, the Philippine, Australia, Myanmar, Cambodia, Singapore, Nigeria, Algeria, Indonesia, Malaysia…… A lot of customers have sent us positive feedback on the crane use. See 5 ton, 10 ton, 15 ton, 20 ton, 30 ton, 50 ton, 80 ton gantry crane installed in the following countries.

Continents Lifting Capacity Countries Operation Mode Indoor/Outdoor Use

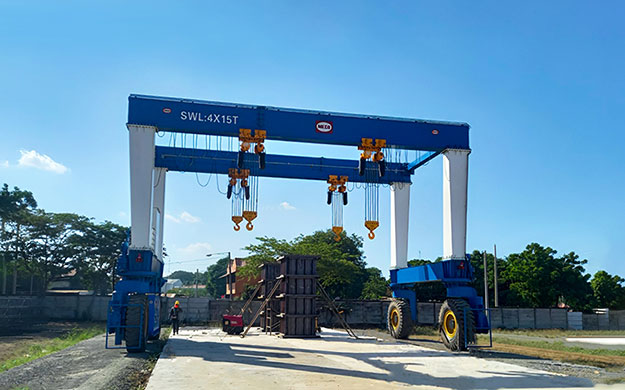

Asia 32 ton, 16 ton, 10 ton, 5 ton Vietnam Rubber Tyred, Rail Mounted Indoor, Outdoor
Asia 80 ton, 16 ton, 10 ton, 50 ton Thailand Rubber Tyred, Rail Mounted Indoor, Outdoor
Asia 5 ton, 10 ton Myanmar Rubber Tyred Indoor, Outdoor
Asia 6 ton, 16 ton Cambodia Rubber Tyred Outdoor
Asia 20 ton, 25 ton Singapore Rail Mounted Outdoor
Asia 10 ton Sri Lanka Rail Mounted Indoor
Asia 10 ton South Korea Rubber Tyred Indoor
Asia 20 ton, 30ton, 50 ton, 80 ton Bangladesh Rubber Tyred, Rail Mounted Indoor, Outdoor
middle East 32 ton, 5 ton, 10 ton, 15 ton, United Arab Emirates Rubber Tyred, Rail Mounted Indoor, Outdoor
middle East 60 ton, 5 ton Saudi Arabia Rail Mounted Indoor, Outdoor
middle East 80 ton, 10ton, 5 ton, 2ton Kuwait Rubber Tyred, Rail Mounted Indoor, Outdoor
middle East 16 ton, 10ton, 5 ton Iraq Rubber Tyred, Rail Mounted Indoor, Outdoor
middle East 32 ton Iran Rail Mounted Outdoor
middle East 32 ton Oman Rubber Tyred Outdoor
Europe 5 ton, 3 ton UK Rubber Tyred Indoor
Europe 3 ton Ireland Rubber Tyred Indoor
Europe 100 ton Serbia Rail Mounted Outdoor
Latin America 20 ton Jamaica Rail Mounted Outdoor
Latin America 70 ton, 50 ton, 32 ton, 20 ton Argentina Rubber Tyred, Rail Mounted Indoor, Outdoor
Latin America 50 ton Peru Rail Mounted Outdoor
North America 10 ton Canada Rail Mounted Outdoor
North America 16 ton America Rail Mounted Outdoor
Oceania 10 ton Fiji Rubber Tyred Outdoor
Oceania 10 ton, 5 ton, 3 ton Australia Rubber Tyred, Rail Mounted Indoor, Outdoor
Oceania 10 ton, 5 ton new Zealand Rubber Tyred Outdoor
Oceania 10 ton Papua New Guinea Rubber Tyred Outdoor
Africa 20 ton, 10 ton, 5 ton Ethiopia Rubber Tyred Indoor, Outdoor
Africa 32 ton Tanzania Rubber Tyred Outdoor
Africa 2 ton Ghana Rail Mounted Indoor
Africa 15 ton, 10 ton Kenya Rubber Tyred, Rail Mounted Indoor
Africa 32 ton, 20 ton, 10 ton, 5 ton Nigeria Rubber Tyred, Rail Mounted Indoor, Outdoor

Note: the above showed cases are a part of Aicrane®. if you wanna know more details, please contact us online now.

Why Choose Us:
Safety to Use
1. Weight overload protection device.
2. Crane traveling limit switch.
3. Voltage lower protection function.
4. Emergency stop system.
5. Current overload protection system.
6. Top quality long time bearing polyurethane materials buffer.
Improve Work Efficiency
1. Cut down your plant or factory building investment.
2. Improve your production efficiency, create more value for your investment.
3. Suitable for different operating conditions, and provide you one-stop solutions.
4. Compact design, low headroom, safety with high performance.
5. Reduce daily maintenance, easy operation & energy saving.
6. You will get a 30% Increasing production upon using gantry cranes.

Different Main Lifting Components of the Gantry Crane
Below are the actual photos of the main lifting components we can provide to match the gantry crane for different project use.

electric-chain-hoist-for-sale

Electric Chain Hoist

Inquiry Price

electric-wire-rope-hoist-1

Wire Rope Hoist

Inquiry Price

european-standard-electric-hoist

European Standard Hoist

Inquiry Price

open-winch-trolley

Electric Winch

Inquiry Price

grab

Grab

Inquiry Price
